ImageMarkPengent

A VSCode extension for intuitively drawing red circle marks and annotations directly on images.

---

Features

• Draw red circle marks directly on PNG/JPG images in VSCode
• Change mark color/line width, move, resize, delete, Undo/Redo
• Save as image (red marks merged at original image size)
• Intuitive UI and keyboard shortcuts

---

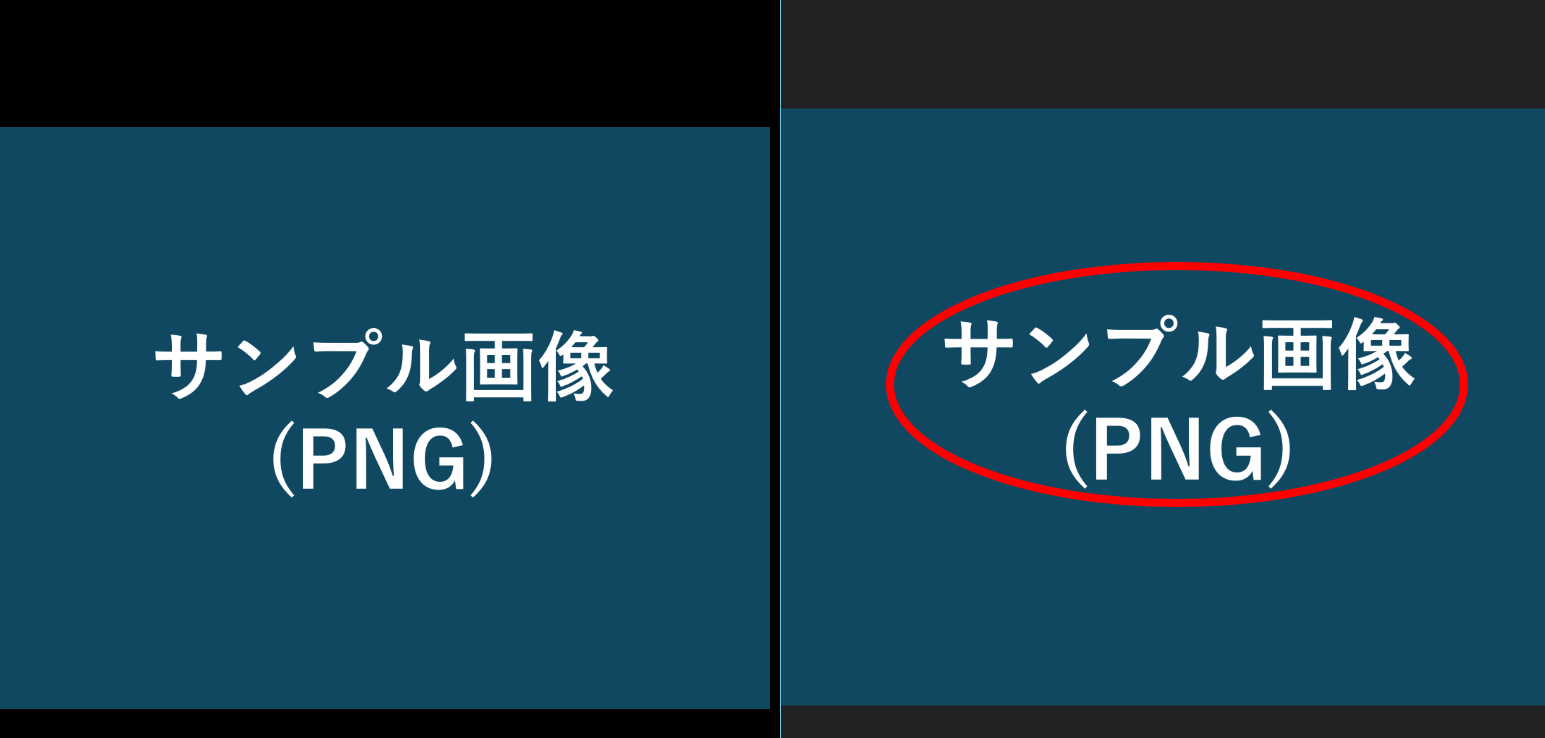

Screenshot

---

How to Use

1. Open an Image

• Right-click a PNG/JPG image in the Explorer → Open in ImageMarkPengent
• Or run ImageMarkPengent: Open in ImageMarkPengent from the Command Palette

2. Draw a Mark

• Click the "Add Mark" button (or Ctrl+drag)
• Drag on the image to draw a red circle

3. Edit Marks

• Click the "Select Mode" button to select a mark
• For the selected mark:
  • Drag to move
  • Drag the corner handles to resize
  • Change color/line width from the toolbar
  • Delete with the Delete key
• Undo (Ctrl+Z) and Redo (Ctrl+Y) are available

4. Save the Image

• Click the "Save" button
• Choose a file name and location; the image will be saved as PNG with red marks at the original size

---

Toolbar Guide

• Move Mode: Scroll/zoom the image
• Select Mode: Select and edit marks
• Add Mark: Add a new red circle mark
• Line Width/Color: Change the mark's line width and color
• Save: Save the edited image

---

Keyboard Shortcuts

• Ctrl+drag: Temporarily add a mark
• Delete/Backspace: Delete selected mark
• Ctrl+Z: Undo
• Ctrl+Y: Redo
• Esc: Return to Move Mode

---

FAQ

• Q. Will the original image be overwritten?
  • A. You can specify a new file name when saving. The original image is not changed.
• Q. Can I edit multiple marks at once?
  • A. Multi-selection is not supported yet, but is planned for future updates.

---

Sample Image

---

Install & Build

1. Install dependencies

   yarn install


2. Build

   yarn compile


3. Press F5 to launch in debug mode

---

License

MIT License
